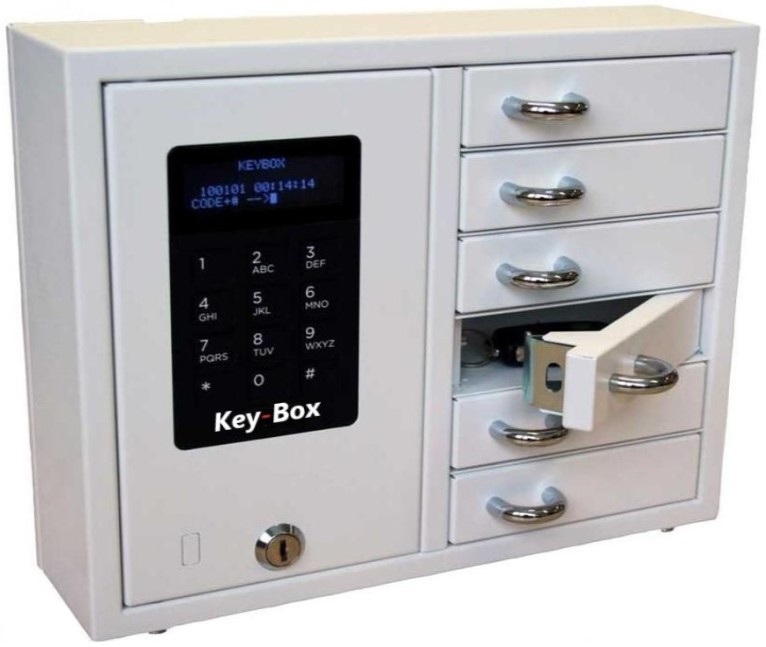

Key-Box Intelligent Modular Key Systems



9006 S Series Key-Box System        9006 S Information Brochure







				Solutions for your valuable keys

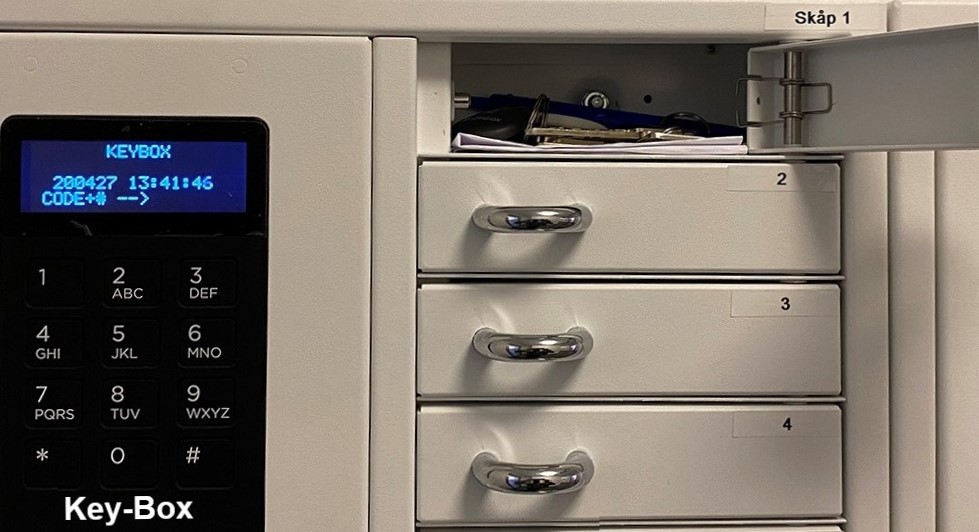

The 9006 S Series intelligent key system is a flexible system that comes with six intelligent storage compartments, PIN entry keypad and an easy to read display to provide an easy overview and user friendly programming. The 9006 S can be plugged into a single power source connection (110V - 120V AC) The system includes a battery back up in case of power outages. The 9006 S can be expanded up to 15 expansion cabinets.

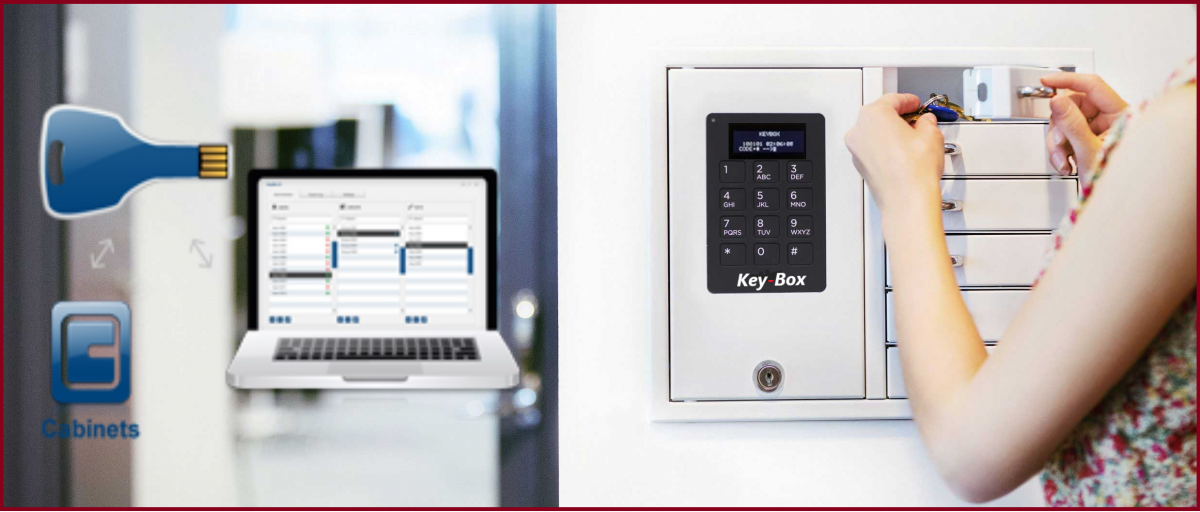

				The Key-Box key 9006 S offers almost all the functions and features of a sophisticated PC based computerized key management system but for around a third of the cost! It features a standalone compact sized cabinet with an integrated electronic keypad and display, 6 lockable compartments, power supply and back-up battery. The Key-Box 9006S holds keys, remotes, facility  keys, key cards, documents etc. It provides accountability of user access and controls and restricts access to one or all compartments through simple display prompts and keypad programming. It accommodates for up to 500 individual user codes, the onboard memory holds up to 3600 time/dated historical events that can be either viewed in the display or downloaded to a USB memory stick and uploaded to your PC or laptop using the KeyWin Light Administrator software. Other options include expansion cabinets that can be added to increase the initial six compartments up to 96 compartments.

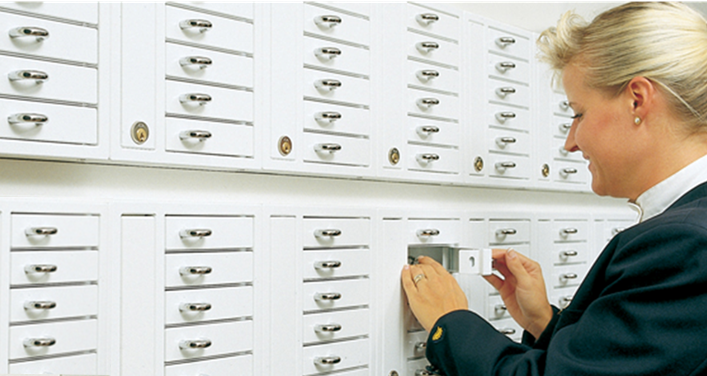

				9006 S series is easily expandable

The 9006 S series key system is easily expandable up to 96 storage compartments with available optional 9006 EC expansion key cabinets Up to 15 expansion cabinets can be added to the 9006 S series key storage system You can start with single 9006 S series cabinet with 6 storage key compartments and expanded the key system as your key storage needs grow in the future.
















Complete Packaged System


9006 S series Package includes: 9006S Series Cabinet KeyWin Light Software, Battery Back Up Set up manual and 1 Year Warranty. In stock for fast delivery across North America





  Special $2,695.00 US

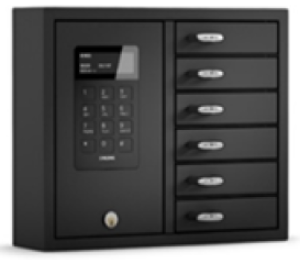

				Available Optional Stainless Steel Cabinet

The 9006 S series is also available in optional Stainless Steel which is rust resistance for longer lasting the whole cabinet is constructed with the highest quality stainless steel available and is more suitable for outdoor use than the standard 9006 S The stainless steel model has all the same quality features as the standard 9006 S















				Key-Box 9006 S Standard & Optional Stainless Steel Key Cabinets Features

				• Stainless Steel Powder Coated Cabinet External Dimensions: W 345mm x H 285mm x D 65mm • Six separate electronically locked compartments Internal Dimensions: W 130mm x H 40mm x D 60mm • Provides for up to 500 individual user access codes • Time and Date Event Log for up to 3,600 transactions • Programmable user access time windows • 8-Programmable Languages for English, Swedish, German, Spanish, French, etc. • Anti-hack keypad lockout - programmable time-out • Surface Mounted or Semi-flush mounted using optional in-wall flush enclosure • 4-line LCD Digital Display with easy view screen • Single or Multiple compartment user access • Optional KeyWin Light administrator software for uploading user transactions and downloading system programming and user  databases • 110 – 240 VAC plug pack power supply with 12VDC rechargeable back-up battery • Manual Override and Service Key • Expandable using optional add-on expansion key cabinets for up to 15 cabinets • Add-on Expansion cabinets are fully interfaced to the Key-Box 9006S Master cabinet cable Ethernet connection to each 9000 EC expansion cabinet

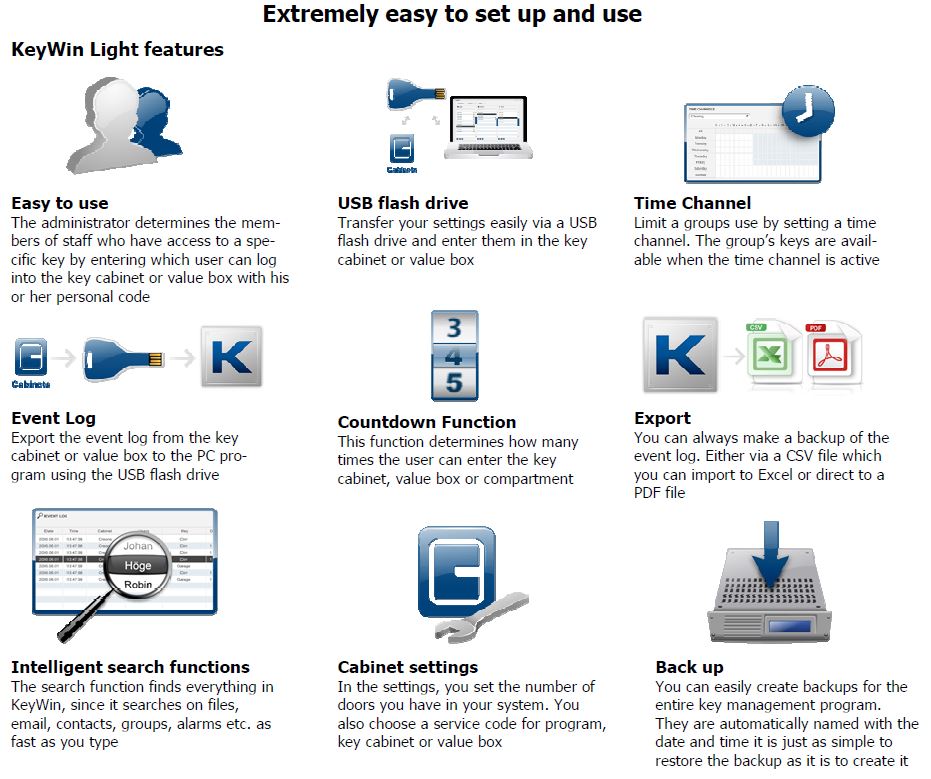

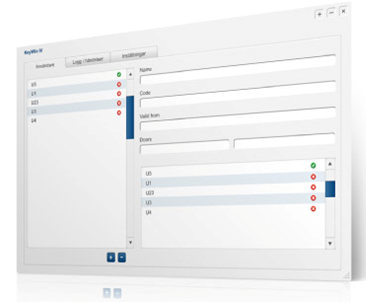

KeyWin Light USB Software


Flexible overview for your key system and locker system KeyWin Light is a software that can be used with the System series for key cabinet and value box. You obtain monitoring and control by plugging a USB flash drive into the cabinet using a service code. The event log is also downloaded to the USB flash drive, which is then processed on a computer. It is simple to add, delete or edit codes as well as to look up information in the event log and then to upload them to the cabinet again via the USB flash drive.























				Please contact us for more info and pricing on our key management systems, solutions and products
