7004 S / 7002 SC series Intelligent Asset Storage Locker Systems

Model: 7004SLOCKER

Key-Box 7004 S series Standalone Locker System with 4 storage compartments. Administration can be performed using KeyWin Light USB PC software or optional Key-Box 7004 SC series Fully Automated Networked Locker System with KeyWin 6 Pro software or optional KeyWin 6 Pro cloud version software.


7004 S and 7004 SC Networked Locker Systems

Key-Box 7004 series Standalone Locker System with 4 storage compartments. Display with simple navigation and programming. The system can be expanded using up to 15 Cabinets from the Optional Expansion range. Administration can be performed using the KeyWin Light PC Program The locker system can be connected to an external alarm. The optional Key 7004 Sc series Fully Automated Networkerd Locker System with KeyWin 6 Pro software or available KeyWin 6 Pro cloud version software. The 7004 SC can be connected to a card access reader. Single power connection 110-120 VAC or optional (230V)

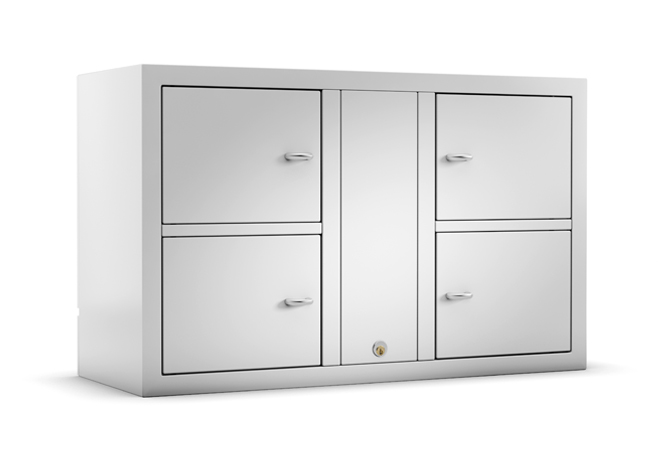

7004 S / 7004 SC series locker system with 4 storage compartments 7004 S EC / 7004 SC EC series expansion with 4 storage compartments







					Accessories


•Battery backup

					•Alarm contacts

					•Buzzer

					•Expansion card for alarm, card reader and KeyWin Light

					•Facade mounting set





					Dimensions


Locker system with 4 storage compartments

					Internal dimensions:

					4 compartments: 260 x 200 x 255 mm

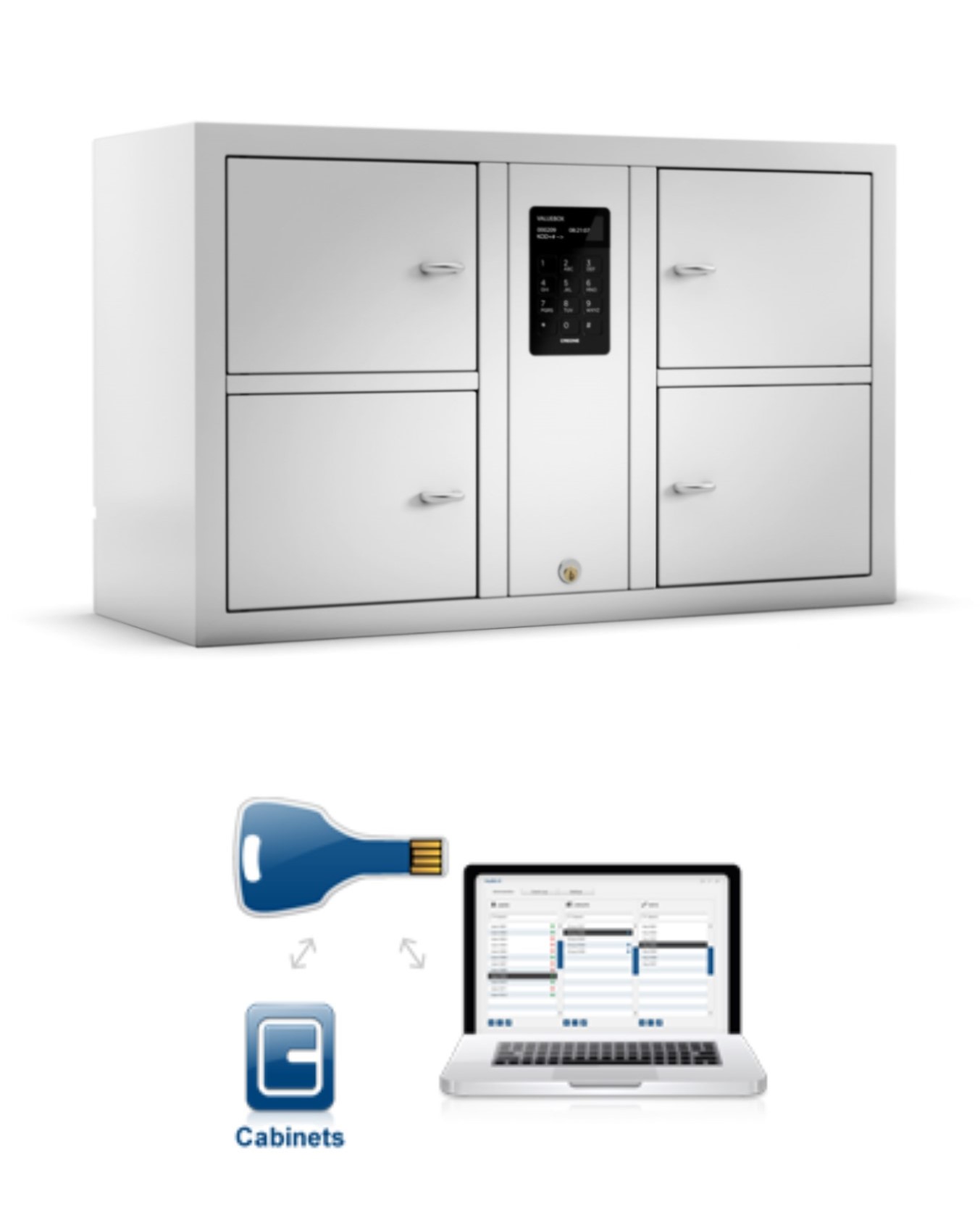

				7004 S Intelligent Locker

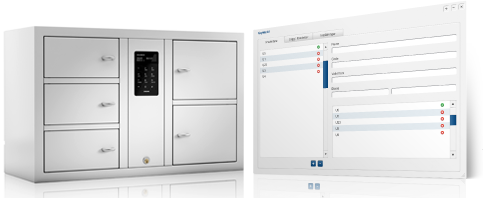

				KeyWin Light Software / KeyWin 6 Pro Software


KeyWin is a software that simplifies your system management in a flexible and easy to grasp way. You can monitor and control storage of valuables with KeyWin Light or with optional KeyWin 6 you can control both storage of valuables and also management of your keys. Both systems are easy to gasp and very simple to administer.
















				Please contact us for more info and pricing on our key management systems, lockers and products
