Key-Rack Modular Key Management System


Intelligent Key-Rack with key identification for monitoring and controlling each and every key Up to 924 key slot capacity

Key-Box High Quality Key Management Systems

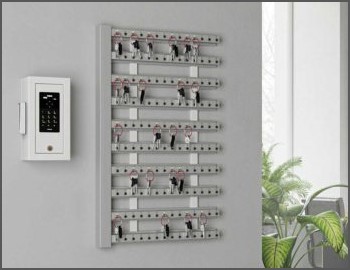

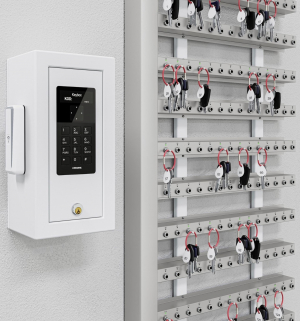

Key-Rack Modular Automated Key System

Intelligent KeyRack with key identification for monitoring and controlling each and every key. Space for a maximum of 924 key slots (maximum of 66 key strips with 14 spaces on each strip). Display with simple menu navigation. Equipped with battery backup, alarm contact for door and buzzer. Administration performed using the PC program KeyWin5. Can be expanded using multiple Key-Rack in the same system.

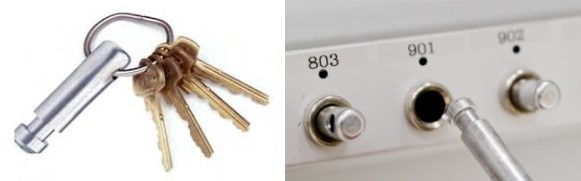

Key-box exclusive Secure-Lock 100% solid metal intelligent key fobs is the solid choice when it comes to choosing a key system. The solid metal key bobs and tamper proof key rings are included with all of our Key-Box key management systems...Learn More
KeyWin Pro 5 Software License Is Included With All Key-Box Automated Key Systems At No Extra Charge!

How Does Key-Rack Key System Work?

The way the key system with intelligent locking key fobs works is each user would be issued a personal PIN number the user will then enter his/her PIN code on the keypad located on the control pod. The system will automatically release only the keys they are authorized to have. The rest of the keys will stay locked in place in the key strips The system will record when the keys were taken and when they are returned and by whom! If the keys are not returned within the curfew the system will automatically generate an email and send it to management or security.

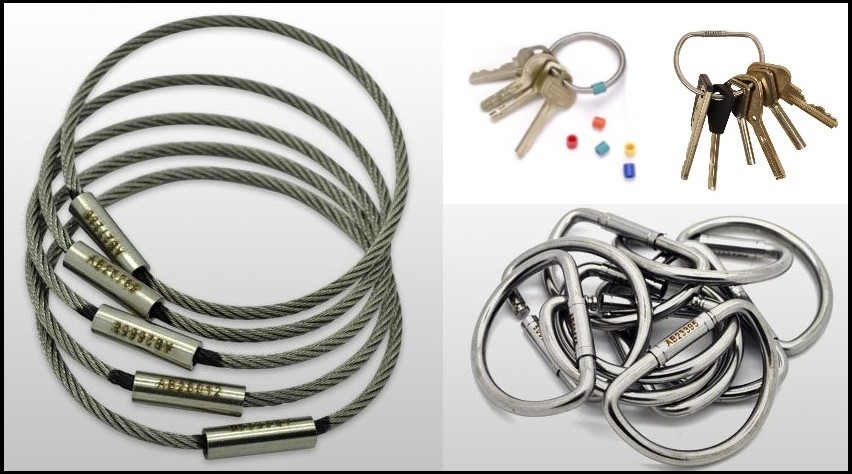

All Key-Box systems come with our durable stainless steel flexible tamper proof key rings

All key systems come standard with our 1.5" diameter round durable flexible stainless steel key rings We also offer a wide range of availble key rings ...Learn More


Key-Rack Key Systems Are Loaded With Advanced Features


  • Selected or random PIN code.
  • Option to change code at cabinet(s).
  • Inactivation of users.
  • Validity period for users.
  • Unlimited number of users.


  • Time restriction.
  • Searchable hidden key ID.
  • Graphical key overview.
  • One key in one or more cabinets.
  • Free or fixed key position




  • Unlimited number of administrators.
  • Adjust administrator rights.
  • Selection of cabinet(s) for administration.
  • Only information about own cabinet(s).
  • Activities registered in log.

Key Rack

  • Search function in display.
  • Information about who has key.
  • Service menu for configuration.
  • Administration code with full authorization.
  • Stand-alone or network.
  • Automatic or fixed IP address.
  • Door alarm.
  • Key alarm.
  • Burglar alarm.
  • Choice of language.
  • Connection for external reader.
  • Connection for external alarm

Event Log

  • Log from PC and cabinet(s).
  • Selection of what will be shown in log.
  • Intelligent search function.
  • Sort by date or events.
  • Clear alarm indications.
  • Reports via CSV file and PDF

Modular Design Features

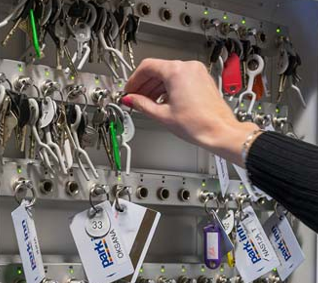

Designed to accommodate between 14 and 924 keys (or key sets), the innovative Key-Rack Series design allows for starting small and later expanding by adding multiples of 14 key positions (called expansion key strips) as required. Expansion Key Strips are defined as locking receptor strips lock the key fobs in place restricting access to authorized personnel down to the individual key. LED lighting indicate which keys can be taken, which keys are restricted and assist the user when returning the key to the correct location.The control pad consists of the user interface which includes the screen, keypad and access card or biometric reader.

User Identification

The Key-Rack Series can support any type of access control device required to identify a user to the key system. Supported devices include RFID proximity readers from all leading access control manufacturers, magstripe, barcode and biometric technologies such as fingerprint, etc.

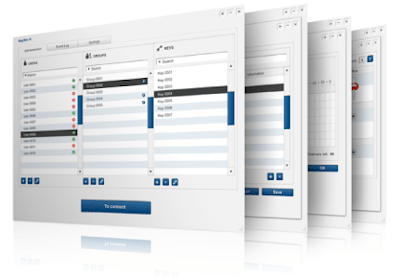

PC Software Administration

The Key-Rack is administered from the user friendly KeyWin 5 Pro software supporting a Microsoft Access or SQL database. The Key-Rack Series can communicate with the KeyWin 5 Pro software using a range of different options including Ethernet, GPRS, RS232 and modem. Multiple systems can be networked together over a local or wide area network to provide accountability for a limitless number of keys administered from multiple PC workstations running the KeyWin 5 Pro software

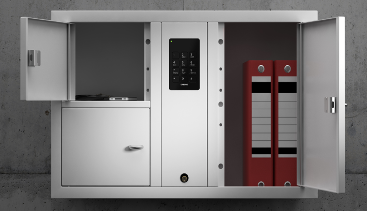

New Automated Storage Locker Systems for Storing Your Valuables!

New Automated Storage Locker Systems

Key-Box now offers a wide range of automated storage locker systems for storing a wide range of assets and valuables ...Learn More
