9006 S Series Electronic Smart Key System

9006S Series Electronic Smart Key System

Key-Box 9006 S Electronic Key-Box for 24/7 access to six or more electronically locked compartments holding keys, access cards, fobs, etc. Provides 500 user codes, stores up to 3,600 historical event log of each user ID, compartment number, time and date. Affordable 24/7 access, programmable restricted access at certain date and times. Ideal for control and accountability of gaming keys in clubs and hotel/motels, small vehicle fleets and dealerships, medication cabinets in hospitals and medical centers, Labs, retail display cabinets, car rental agencies, Hotel/motels accommodation late check-in and contractor out-of-hours emergency key access.


9006 S Brochure with Pricing

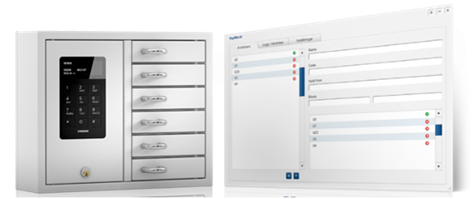

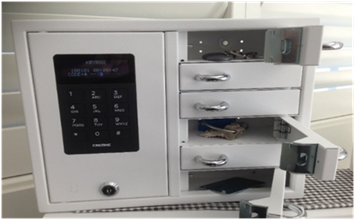

The Key-Box key dispenser 9006S offers almost all the functions and features of a sophisticated PC based computerized key management system but for around a third of the cost! It features a stand-alone compact sized cabinet with an integrated electronic keypad and display, 6 lockable compartments, power supply and back-up battery. The Key-Box 9006S holds keys, remotes, hotel keys, key cards, documents etc. It provides accountability of user access and controls and restricts access to one or all compartments through simple display prompts and keypad programming. It accommodates for up to 500 individual user codes, the onboard memory holds up to 3600 time/dated historical events that can be either viewed in the display or downloaded to a USB memory stick and uploaded to your PC or laptop using the optional KeyWin Light Administrator software. Other options include expansion slave cabinets that can be added to increase the initial six compartments up to 96 additional compartments.

Features secured locked compartments with controlled access for up to 500 users

The 9006 S series is also available in Stainless Steel which is rust resistance for longer lasting the whole cabinet is Cabinet is constructed with the highest quality Swedish stainless steel and is more suitable for outdoor use than the standard 9006 S the stainless steel model has all the same quality features as the standard 9006 S



Key-Box 9006 S Standard and 9006 S Stainless Key Dispenser Features

• Steel Powder Coated Cabinet External Dimensions: W 345mm x H 285mm x D 65mm

• Six separate electronically locked compartments Internal Dimensions: W 130mm x H 40mm x D 60mm
• Provides for up to 500 individual user access codes
• Time and Date Event Log for up to 3,600 transactions
• Programmable user access time windows
• 8-Programmable Languages for English, Swedish, German, Spanish, French, etc.
• Anti-hack keypad lockout - programmable time-out
• Surface Mounted or Semi-flush mounted using optional in-wall facad
• 4-line LCD Display easy view screen
• Single or Multi compartment user access

• Optional KeyWin Light administrator software for uploading user transactions and downloading system
   programming and user  databases
• 110 – 240 VAC plug pack power supply with 12VDC rechargeable back-up battery
• Manual Override/Service Key
• Expandable using optional add-on expansion slave cabinets for up to 15 cabinets
• Add-on Expansion cabinets are fully interfaced to the Key-Box 9006S Master cabinet cable Ethernet
  connection to each 9000 E expansion slave cabinet


For Information on our fully automated networked key management systems with individual intelligent Locking Key Fobs that secure individual keys or key Sets with full accountability of each key and user 24/7


     Please click to learn more



Please contact us for more info and pricing on our key management systems, solutions and products

Please Click to Contact Us Now
